TWO POST MODELS

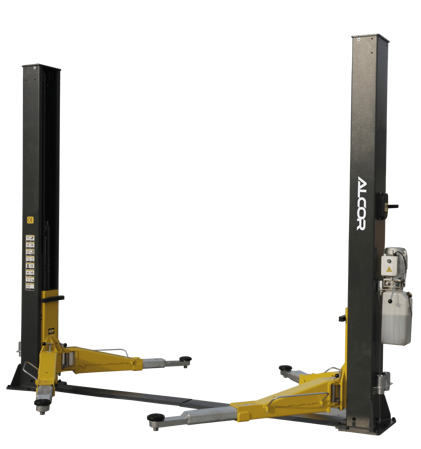

ALCOR

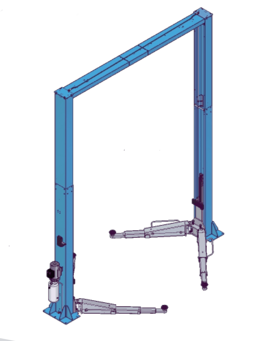

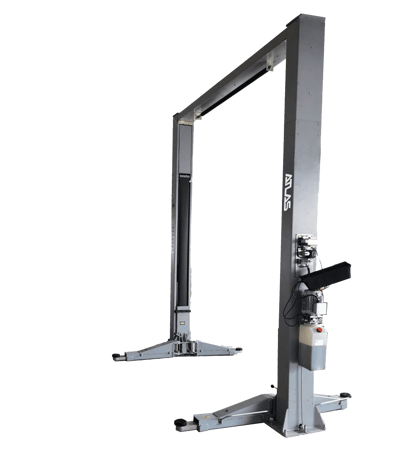

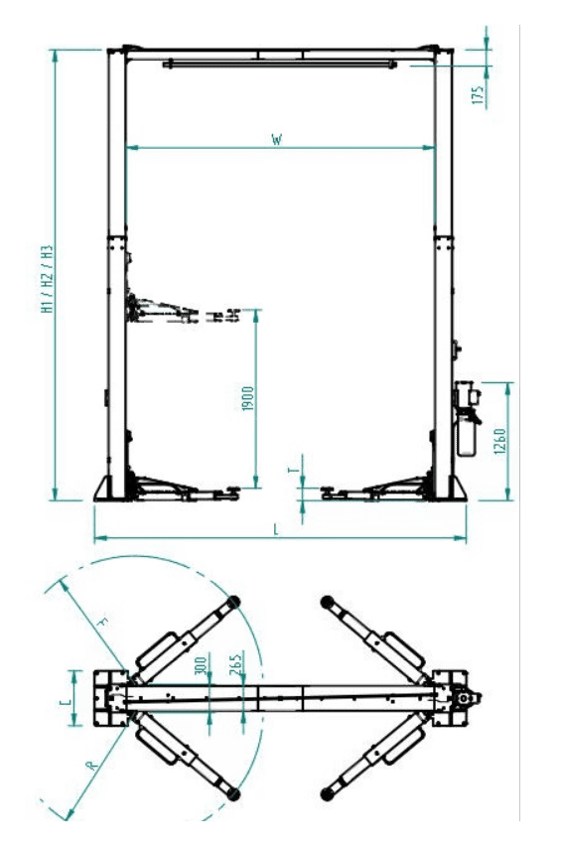

ATLAS
- Capacity 4000Kg and 5000Kg
- Manual or electro safety release
- Manual or electro down valve
- Very low floor connection cover only 22mm
- Many lifting arms combinations (optional)
- Very low lifting pads only 75mm (optional)
- Capacity 4000Kg o 5000Kg
- Manual or electro safety release
- Manual or electro down valve
- Many lifting arms combinations (optional)
- Different column height from 3810mm to 5010mm
- Very low lifting pads only 75mm (optional)
PRODUCTS DETAILS
Low floor connection cover only 22mm
Solid structure composed of quality materials.
Model with manual release of down valve and manual safety release
Model with manual release of down valve and electric control panel
1. Main switch 2. Power light
3. Electric safety release
4. Ascent
Model with electric release of down valve and electric control panel
1. Main switch 2. Power light
3. Electric safety release
4. Descent 5. Ascent
Reinforced 2 or 3 stage lifting arms
Standard pads for 2 stages from 90 to 135mm
Standard pads for 3 stages from 95 to 160mm
Optional pads for 3 stages from 75 to 140mm
- A. Standard height only for 4t , extension height 980mm.
- B. Standard height for 5t and 4410mm for 4t, extension height 1580mm.
- C. Height of 4810mm for 4t and 5t, extension height 1980mm.
- D. Height of 5010mm only for 5t, extension 2180mm.
