MIRACH / SIRIUS

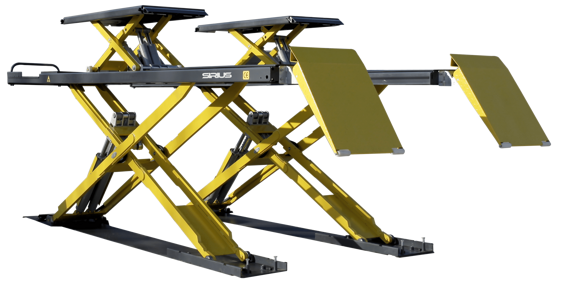

SIRIUS

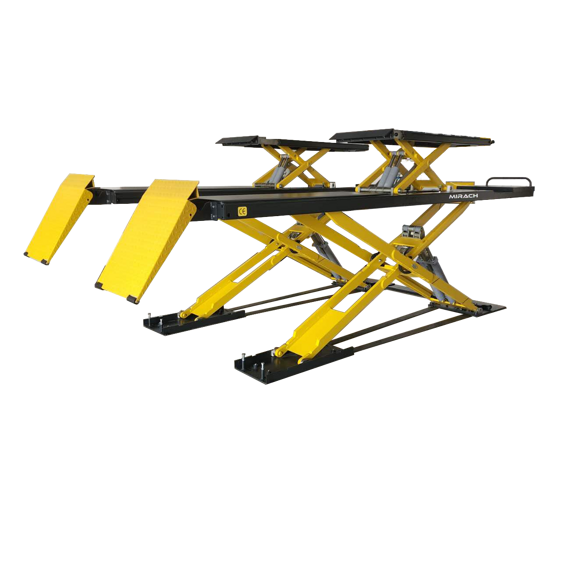

MIRACH

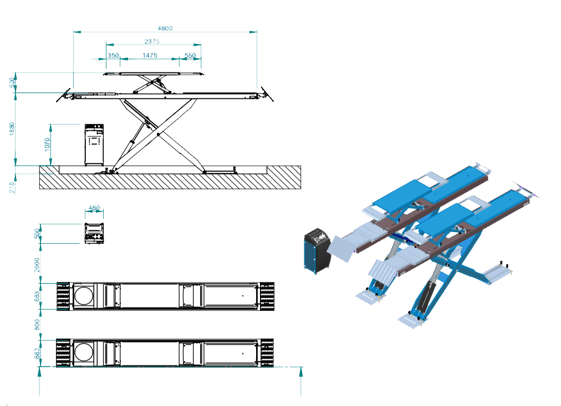

Low profile, two versions: on floor or inground.
Capacity of 4000Kg or 5000Kg.
Platfrom lenght of 4600mm or 5000mm.
The platform integrates turrets, sliding plates and turntables.
The depth of the pit is only 210 mm and the minimum height of the lifter is only 200 mm.
Available in 3 different versions: Wheel Alignment with turrets (WLT), Simple alignment without turrets (WL) and Service with flat platform (S).

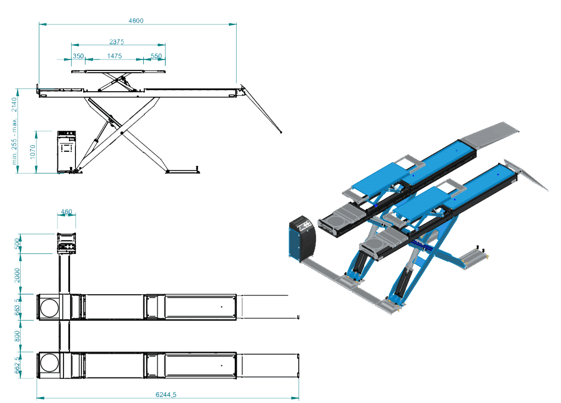

High profile, two versions: on floor or inground.
Capacity of 4000Kg or 5000Kg.
Platform lenght of 4600mm or 5000mm.
Completely flat platform integrating turrets, sliding plates and turntables.
The floor model with integrated ramps has a minimum height from the ground of 255mm.
For the inground model, the depth of the pit is only 260 mm and the minimum height of the lifter is only 255 mm.
The version for wheel alignment (WLT) integrates the turrets.

PRODUCTS DETAILS

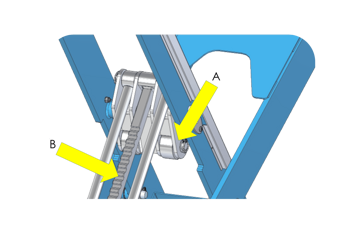

Lever (A) to ensure that the lift at minimum height does not require high hydraulic pressure. Mechanical safety system (B)

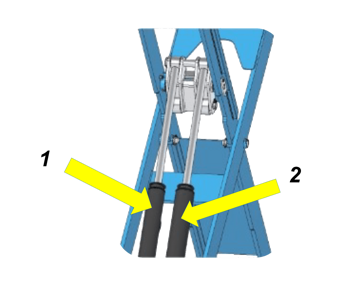

Double system Master (1) & Slave (2) crossed that allows not to have the mechanical safety system.

MIRACH / SIRIUS

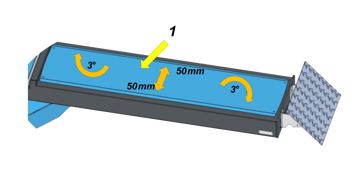

The wheel aligner version has a front sliding plate which can be locked in the center with a pin.

The sliding plate can be moved 50mm to the right or left and can rotate 3 degrees.

The lifter has two bases: (1) a rear and (2) a front.

All bases are adjustable with screws (3) up to 25 mm.

The mobile scissor (4) is on rollers (5), with less friction and less noise.

MIRACH / SIRIUS

The locking of the sliding plates is pneumatic (optional). The cylinder locks the plate each time in the central position.

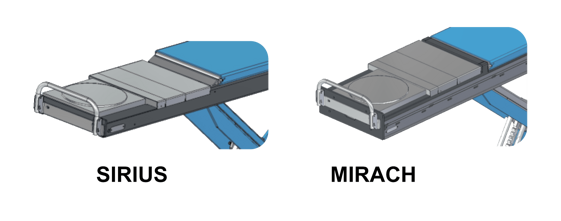

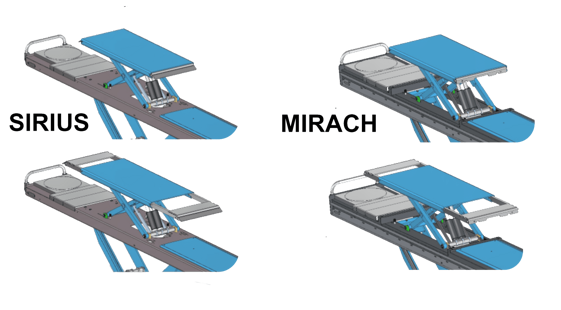

Long recess with cover for the turntable, suitable for small and large vehicles. Turrets with lifting capacity of 4000Kg or 5000Kg, with lifting heights of 470mm or 520mm. Extensions are 1475mm, 1825mm and 2375mm.
